intelligent automaton vehicle for the delivery of food and products

Trusted Communications at Scale

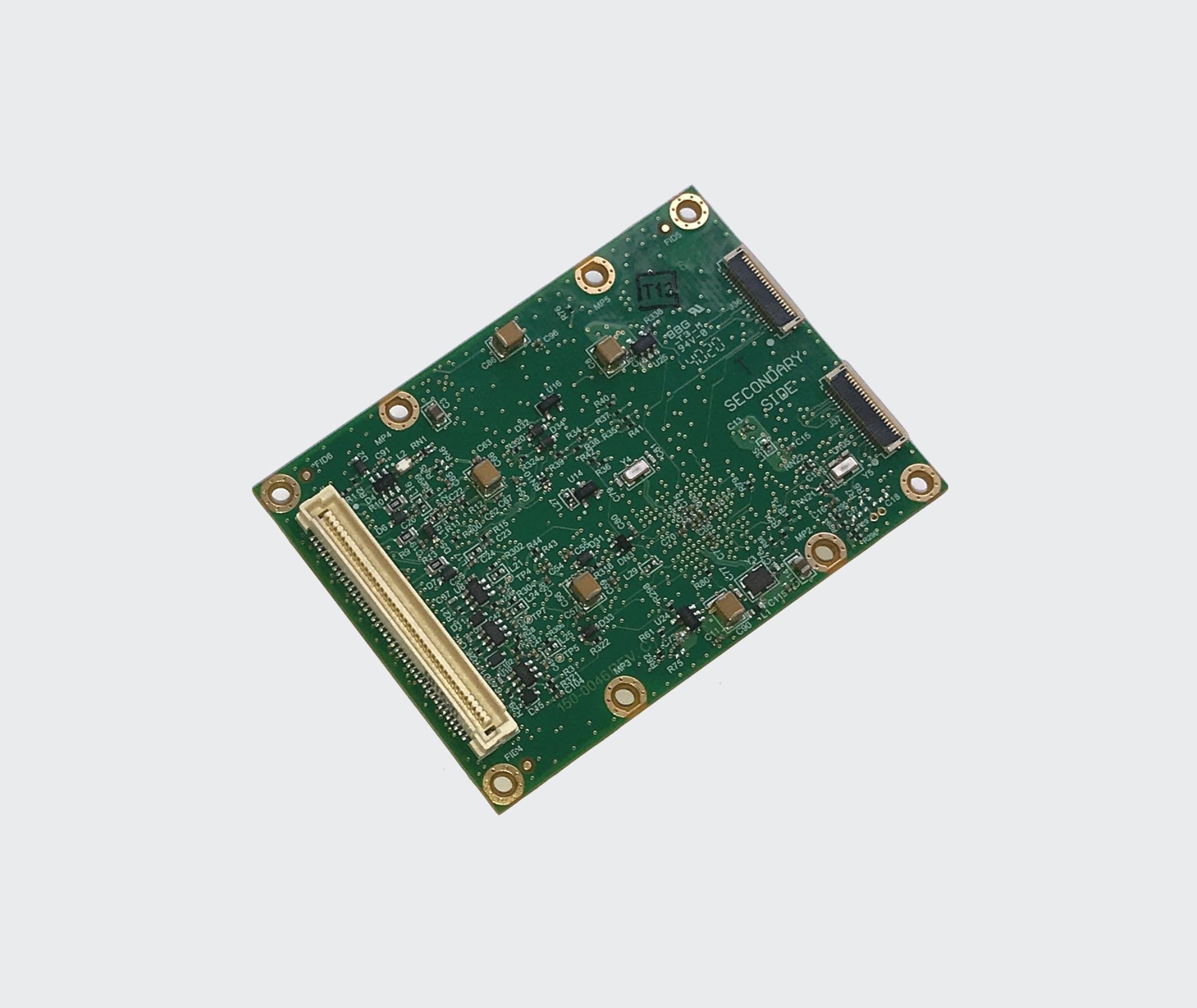

The Nano Safety Controller can send or receive dependable commands over wireless networks. Embed into multiple machines for high-volume safety applications for autonomous mobile robots, vehicles, and more.

wifi-white
Achieve SIL 2 integrity levels over wireless
cogs-white
Save space with an embedded solution
broadcast-white
Communicate over long distances
diagram-white
Send safety commands to multiple robots or vehicles simultaneously

Experience high-integrity wireless communications.

Command Multiple Robots Simultaneously

Integrate the Nano Safety Controller into multiple robots or vehicles, enabling them to receive simultaneous commands from a central source over IP networks.

Streamlined Development

The Nano Safety Controller leverages FORT's expertise in functional safety and makes it possible to send and receive trusted communications over virtually any network with minimal development effort or risk to system designers.

Black Channel Communications

We apply black channel communication principles to isolate and transmit safety data over virtually any network. Error detection and latency monitoring add extra layers of protection to ensure data integrity.

Scalable Deployment

Integrate the Nano Safety Controller into multiple robots or vehicles to enable the receipt of wireless commands from a central source.

Trusted Commands

Commands can include e-stop, crawl, reduce torque, or other changes in state. Configure the Nano Safety Controller to send or receive the specific commands that are safety-critical for your operation.

Technical Specifications

Wired Interface

80 pin TE 5177986-3, engages with TE 5-5179180-3 (using a TTL level UART for data and status communications)
USB for programming and configuration

Safety I/O

Two dual channel emergency stop loop inputs with active diagnostics. (Designed to meet ISO 13849 Category 3 Performance Level d and IEC 61508 SIL 2)
Two dual safety outputs with built-in fault detection

Requirements

Nano Safety Controller requires the use of FORT software agent. Contact FORT for more details.
smart asian glassses engineer working site inspector hand

Part of the FORT Pro Series

The NSC is part of the FORT Pro product series, which makes it possible to deliver trusted commands over virtually any network. It can communicate with the FORT Endpoint Controller

More Products
Warehouse AMRs with boxes

Nano Safety Controller Applications

The Nano Safety Controller is ideal for OEMs with plans to deploy multiple mobile machines or vehicles, or for those who want to build trusted command technology into their own remote controls or HMI. Developers can also leverage the FORT Platform to build functional safety and secure communications into their autonomous system or smart machine.

FORT Platform

Why FORT

When people and machines are working closely together, safe, secure communications are a must. FORT's trusted communication technology ensures that data integrity is maintained and commands arrive in a timely manner, secure and uncompromised, so you can trust that machines will do what you need them to.

Put safety first today and build a better tomorrow.
